Building a Schedule Matrix

On this page

A schedule matrix puts one team per row and one week per column, and draws each opponent’s logo in the cell where they met. This article builds two:

A conference’s season: every SEC football team’s 2025 schedule, each cell shaded by whether the game was at home, away or on a neutral field, with the byes marked.
One team’s season: the 2025-26 NBA team with the best record, laid out as a calendar, each game shaded by whether it was won or lost.

The catch in both is the coloring. A cell’s fill is a decision made cell by cell, not column by column. gt_highlight_cells() fills individual cells by a condition and gt_legend_discrete() draws the matching key; gt_sdv_logos() turns the opponents into logos. The SEC schedule comes from cfbfastR (CollegeFootballData.com, which needs a free API key) and the NBA games from hoopR’s ESPN team box scores.

gt_highlight_cells() and gt_legend_discrete() come from Andrew Weatherman’s gtUtils, and the SEC matrix follows his schedule-matrix example.

library(sdvplotR)
library(gt)
library(dplyr)
library(tidyr)

1. A conference’s season, one row per team

load_cfb_schedules() holds one row per game. nflreadr::clean_homeaway() doubles it into one row per team per game, renaming the home_* / away_* pairs to team_* / opponent_* and adding a location of "home" or "away". We fold the schedule’s neutral_site flag into that column as a third value, then keep the SEC. Week 15 holds only the conference title games, so the matrix stops at week 14.

schedule <- cfbfastR::load_cfb_schedules(2025)

The output below uses a snapshot of that call taken on November 09, 2026, the one the college football tutorial reads, because CollegeFootballData.com caps a key’s calls each month and the site build cannot rely on one; data-raw/article_fixtures.R takes it with the same code.

sec <- schedule |>
  filter(season_type == "regular", week <= 14) |>
  select(week, home_team, away_team, home_conference, away_conference, neutral_site) |>
  nflreadr::clean_homeaway() |>
  filter(team_conference == "SEC") |>
  mutate(location = if_else(neutral_site %in% TRUE, "neutral", location)) |>
  select(team, week, location, opponent) |>
  arrange(team, week)

The cells will hold the opponents’ school names, not image URLs. gt_sdv_logos() resolves a name like "Texas A&M" or "Central Arkansas" to the school’s logo when the table renders, FBS and FCS alike.

opponents <- sec |>
  pivot_wider(id_cols = team, names_from = week, values_from = opponent, names_sort = TRUE)

wk <- setdiff(names(opponents), "team")

names_sort = TRUE sorts the week columns. Because week is numeric they come out 1 through 14 in order rather than 1, 10, 11, ....

2. Carrying the location as a parallel mask

pivot_wider() on the opponent loses the location. Pivot it into its own frame of the same shape and turn each state into a logical mask.

locations <- sec |>
  pivot_wider(id_cols = team, names_from = week, values_from = location, names_sort = TRUE)
locations <- locations[match(opponents$team, locations$team), wk]

home_mask <- locations == "home"
away_mask <- locations == "away"
neutral_mask <- locations == "neutral"

The match() line holds locations to the row order of opponents, so the two frames line up cell for cell. Each mask is a TRUE/FALSE grid the same shape as the week columns, which is what gt_highlight_cells() takes. A bye is a missing opponent, so it needs no mask: its cells are NA in every mask, which gt_highlight_cells() reads as no match.

3. Filling cells by condition

gt_highlight_cells() fills the cells in a block of columns that meet a condition: either a formula tested against each column, like ~ is.na(.x), or a logical matrix the same shape as the columns, which is what the masks are. It is the per-cell counterpart to gtExtras::gt_highlight_cols() and gt_highlight_rows(), which fill whole columns or rows. Anything in ... goes to gt::cell_text() for the filled cells, which is how the byes get small grey type.

# ... |>
gt_highlight_cells(all_of(wk), condition = home_mask, fill = "#FBE7C6") |>
  gt_highlight_cells(all_of(wk), condition = away_mask, fill = "#FFFFFF") |>
  gt_highlight_cells(all_of(wk), condition = neutral_mask, fill = "#CFE0C3") |>
  gt_highlight_cells(
    all_of(wk),
    condition = ~ is.na(.x), fill = "#E4E4E4",
    text_color = "#565C64", size = px(9), weight = 600
  )

4. Logos for the opponents and the team

gt_sdv_logos() takes a whole block of columns, so one call draws every opponent; each logo’s alt text is the school’s full name. On the team column, include_name = TRUE keeps the name beside its logo. The byes are filled in with sub_missing(); a cell that names no team passes through gt_sdv_logos() as text.

# ... |>
sub_missing(columns = all_of(wk), missing_text = "BYE") |>
  gt_sdv_logos(columns = all_of(wk), league = "cfb", height = 24) |>
  gt_sdv_logos(columns = team, league = "cfb", height = 22, include_name = TRUE)

5. The legend

gt_legend_discrete() draws the key. Pass it a named vector of label = color and it renders the swatches, using the same fills as the cells so the key matches the table. label_placement = "inside" prints each label on its swatch, with the text color chosen per swatch for contrast. The heading_style and label_style lists take the same keys as every other style list in the package (see Styling Headers, Legends and Captions).

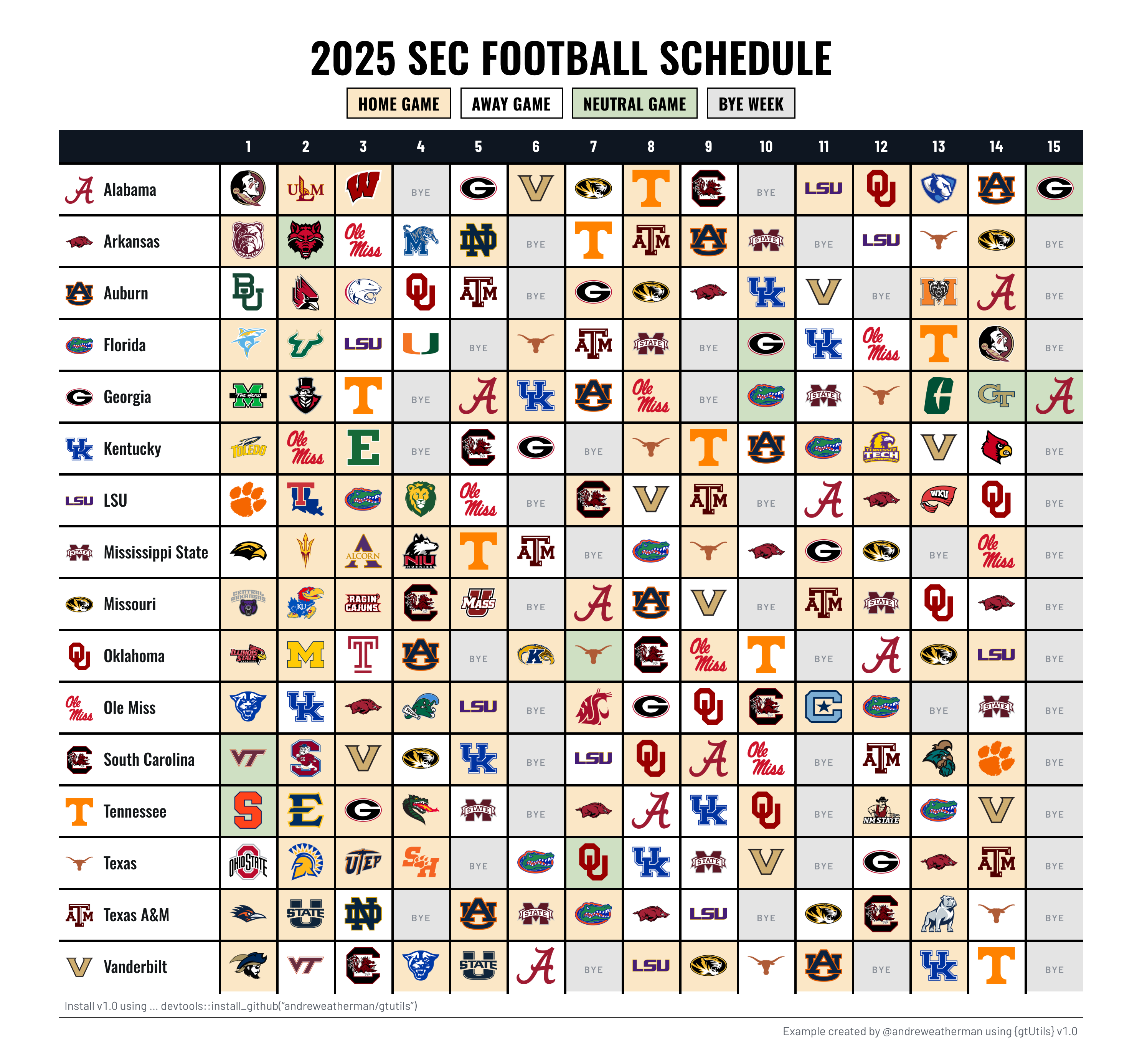

The SEC matrix

location_key <- c(
  "Home game" = "#FBE7C6", "Away game" = "#FFFFFF",
  "Neutral site" = "#CFE0C3", "Bye week" = "#E4E4E4"
)

opponents |>
  gt(id = "sec-schedule") |>
  gt_theme_scoreboard() |>
  gt_highlight_cells(all_of(wk), condition = home_mask, fill = "#FBE7C6") |>
  gt_highlight_cells(all_of(wk), condition = away_mask, fill = "#FFFFFF") |>
  gt_highlight_cells(all_of(wk), condition = neutral_mask, fill = "#CFE0C3") |>
  gt_highlight_cells(
    all_of(wk),
    condition = ~ is.na(.x), fill = "#E4E4E4",
    text_color = "#565C64", size = px(9), weight = 600
  ) |>
  sub_missing(columns = all_of(wk), missing_text = "BYE") |>
  gt_sdv_logos(columns = all_of(wk), league = "cfb", height = 24) |>
  gt_sdv_logos(columns = team, league = "cfb", height = 22, include_name = TRUE) |>
  cols_align(columns = all_of(wk), "center") |>
  cols_width(team ~ px(136), all_of(wk) ~ px(36)) |>
  cols_label(team = "") |>
  gt_border_grid(weight = 2) |>
  tab_options(table_body.hlines.width = px(2), data_row.padding = px(3)) |>
  tab_style(locations = cells_column_labels(), cell_text(size = px(13))) |>
  tab_style(locations = cells_body(columns = team), cell_text(size = px(13), weight = 600)) |>
  gt_legend_discrete(
    location_key,
    location = "top", label_placement = "inside", shape = "square",
    gap = 8, swatch_size = 20, border_width = 1.5, border_color = "black",
    heading = "2025 SEC football schedules",
    heading_style = list(
      font = "Oswald", size = 32, weight = 600,
      transform = "uppercase", margin_bottom = -2
    ),
    label_style = list(font = "Oswald", size = 13, margin_bottom = 6)
  ) |>
  gt_538_caption(
    "Regular season, weeks 1-14. The SEC title game (week 15) is left out.",
    "Data: CollegeFootballData.com via cfbfastR"
  )

¹	4¹	5¹	6¹	7¹	9¹	10¹	11¹	12¹	13¹
2025 SEC football schedules Home gameAway gameNeutral siteBye week
Alabama	BYE					BYE
Arkansas			BYE				BYE
Auburn			BYE					BYE
Florida		BYE			BYE
Georgia	BYE				BYE
Kentucky	BYE			BYE
LSU			BYE			BYE
Mississippi State				BYE					BYE
Missouri			BYE			BYE
Oklahoma		BYE					BYE
Ole Miss			BYE						BYE
South Carolina			BYE				BYE
Tennessee			BYE				BYE
Texas		BYE					BYE
Texas A&M	BYE					BYE
Vanderbilt				BYE				BYE
¹ Regular season, weeks 1-14. The SEC title game (week 15) is left out.
Data: CollegeFootballData.com via cfbfastR

gt_border_grid() draws the black rules between every cell, which is what makes the fills read as a grid of games rather than a striped list.

6. One team’s season as a calendar

The second matrix turns a single season into a calendar: one row per week, one column per weekday, the opponent’s logo on each game day. We find the team with the most regular-season wins (alphabetical order breaks a tie, so a rebuild picks the same team), then keep its games.

# the NBA Cup final is filed as a regular-season game but counts in no record
cup_final <- hoopR::load_nba_schedule(2026) |>
  filter(type_abbreviation == "CC") |>
  pull(id)

nba <- hoopR::load_nba_team_box(2026) |>
  # regular season; the box scores also hold the All-Star games
  filter(season_type == 2, team_abbreviation %in% sdv_teams("nba")$abbr, !game_id %in% cup_final)

best <- nba |>
  summarise(wins = sum(team_winner), losses = sum(!team_winner), .by = team_abbreviation) |>
  arrange(desc(wins), team_abbreviation) |>
  slice(1)

days <- c("Mon", "Tue", "Wed", "Thu", "Fri", "Sat", "Sun")

games <- nba |>
  filter(team_abbreviation == best$team_abbreviation) |>
  mutate(
    weekday = as.integer(format(game_date, "%u")),
    day = days[weekday],
    week_of = game_date - (weekday - 1)
  ) |>
  select(week_of, day, opponent = opponent_team_abbreviation, won = team_winner)

format(game_date, "%u") gives the weekday as a number, Monday 1 to Sunday 7, whatever language the computer runs in, and subtracting it walks each game back to the Monday of its week. Two pivots from the same frame give the logos and the results, and complete() adds any week without a game (an All-Star break can leave one), so the weeks run down the calendar without a gap.

all_weeks <- seq(min(games$week_of), max(games$week_of), by = 7)

calendar <- games |>
  pivot_wider(id_cols = week_of, names_from = day, values_from = opponent) |>
  complete(week_of = all_weeks)
results <- games |>
  pivot_wider(id_cols = week_of, names_from = day, values_from = won) |>
  complete(week_of = all_weeks)

# every weekday as a column, in calendar order
calendar <- calendar[c("week_of", days)]
results <- results[days]

calendar <- calendar |>
  mutate(week = paste(month.abb[as.integer(format(week_of, "%m"))], as.integer(format(week_of, "%d")))) |>
  select(week, all_of(days))

win_mask <- results == TRUE
loss_mask <- results == FALSE

month.abb names the week in English whatever the system locale is, so the labels match on every machine that builds this page.

gt_theme_sdv_team() dresses the calendar in the team’s own colors: the title block in its primary color and the line under the labels in its secondary. The fills sit under the logos, so a glance down the grid shows the streaks.

team_name <- sdv_teams("nba")$name[sdv_teams("nba")$abbr == best$team_abbreviation]

calendar |>
  gt(id = "team-calendar") |>
  gt_highlight_cells(all_of(days), condition = win_mask, fill = "#CDEBD3") |>
  gt_highlight_cells(all_of(days), condition = loss_mask, fill = "#F6CFCB") |>
  sub_missing(columns = all_of(days), missing_text = "") |>
  gt_sdv_logos(columns = all_of(days), league = "nba", height = 26) |>
  cols_label(week = "Week of") |>
  cols_align(columns = all_of(days), "center") |>
  cols_width(week ~ px(78), all_of(days) ~ px(52)) |>
  tab_header(
    title = paste0(team_name, ", ", best$wins, "-", best$losses),
    subtitle = "The 2025-26 regular season, game by game"
  ) |>
  gt_theme_sdv_team(team = best$team_abbreviation, league = "nba", density = "compact") |>
  gt_border_grid(color = "#FFFFFF", weight = 2) |>
  gt_legend_discrete(
    c("Win" = "#CDEBD3", "Loss" = "#F6CFCB"),
    location = "bottom", label_placement = "inside", shape = "rounded",
    swatch_size = 18, gap = 6
  ) |>
  tab_source_note("Data: ESPN box scores via hoopR")

Week of	Mon	Tue	Wed	Thu	Fri	Sat	Sun
Oklahoma City Thunder, 64-18
The 2025-26 regular season, game by game
Oct 20
Oct 27
Nov 3
Nov 10
Nov 17
Nov 24
Dec 1
Dec 8
Dec 15
Dec 22
Dec 29
Jan 5
Jan 12
Jan 19
Jan 26
Feb 2
Feb 9
Feb 16
Feb 23
Mar 2
Mar 9
Mar 16
Mar 23
Mar 30
Apr 6
WinLoss
Data: ESPN box scores via hoopR

gt_legend_discrete(location = "bottom") sets the key under the table, where it does not compete with the team-colored title block. A white gt_border_grid() separates the fills without drawing a hard rule through the logos.
