Theme Elements for Image Grobs

Source: R/theme_elements.R
element_sdv.Rd

In conjunction with the ggplot2::theme system, the following element_ functions enable images in non-data components of the plot, e.g. axis text.

  • element_sdv_logo(): draws team logos instead of their abbreviations.

  • element_sdv_wordmark(): draws team wordmarks instead of their abbreviations.

  • element_sdv_headshot(): draws player headshots instead of their IDs.

  • element_sdv_raster(): draws a single image in a rectangular theme element such as plot.background. A thin wrapper around ggpath::element_raster().

Usage

element_sdv_logo(
  league,
  alpha = NULL,
  colour = NA,
  color = NULL,
  hjust = NULL,
  vjust = NULL,
  size = 0.5,
  season = NULL,
  id_system = "auto"
)

element_sdv_wordmark(
  league,
  alpha = NULL,
  colour = NA,
  color = NULL,
  hjust = NULL,
  vjust = NULL,
  size = 0.5,
  season = NULL,
  id_system = "auto"
)

element_sdv_headshot(
  league,
  alpha = NULL,
  colour = NA,
  color = NULL,
  hjust = NULL,
  vjust = NULL,
  size = 0.5,
  id_system = "espn"
)

element_sdv_raster(
  image_path,
  x = grid::unit(0.5, "npc"),
  y = grid::unit(0.5, "npc"),
  width = grid::unit(1, "npc"),
  height = grid::unit(1, "npc"),
  just = "centre",
  hjust = 0.5,
  vjust = 0.5,
  interpolate = TRUE,
  ...
)

Arguments

league

A league key from sdv_leagues().

alpha

The alpha channel (transparency) between 0 and 1.

colour, color

The image will be colorized with this color. Use "b/w" for black and white.

hjust

Horizontal justification.

vjust

Vertical justification.

size

The output grob size in cm.

season

NULL for today's marks, or one season: the marks the teams wore that season. One element draws every label, so one season.

id_system

"auto" (try every id system in priority order) or one id system: "team_id", "espn", "espn_abbr", "nhl", "nflverse", "mlbstats", "nba_api", "hockeytech", "ncaa", "pff", "cricinfo", "cfbd", "bref", "sportsipy", "fangraphs", "yahoo", "kenpom", "torvik", "sdvplotr", "name", or one "auto" never tries because its numbers overlap ESPN's: "nhl_id" (NHL stats API ids), "fox", "cbs", "sports247" (247Sports team and institution ids) or "on3".

image_path

A file path or url to an image.

x, y, width, height, just, interpolate

Passed on to ggpath::element_raster().

...

Other arguments passed on to ggpath::element_raster().

Value

element_sdv_logo(), element_sdv_wordmark() and element_sdv_headshot() return a theme element extending ggpath::element_path(); element_sdv_raster() returns a ggpath::element_raster().

Details

The elements translate team abbreviations or player IDs into logo images or player headshots for the specified league. Rendering is delegated to ggpath::element_path(), which they extend. Set on a parent element such as axis.text.x, they also replace the position children (axis.text.x.bottom, axis.text.y.left, ...) that complete themes like ggplot2::theme_minimal() set, keeping the child's spacing.

See also

ggpath::element_path(), ggpath::element_raster()

Examples

# \donttest{
library(sdvplotR)
library(ggplot2)

team_abbr <- sdv_teams("nfl")$abbr[1:16]

df <- data.frame(
  random_value = runif(length(team_abbr), 0, 1),
  teams = team_abbr
)

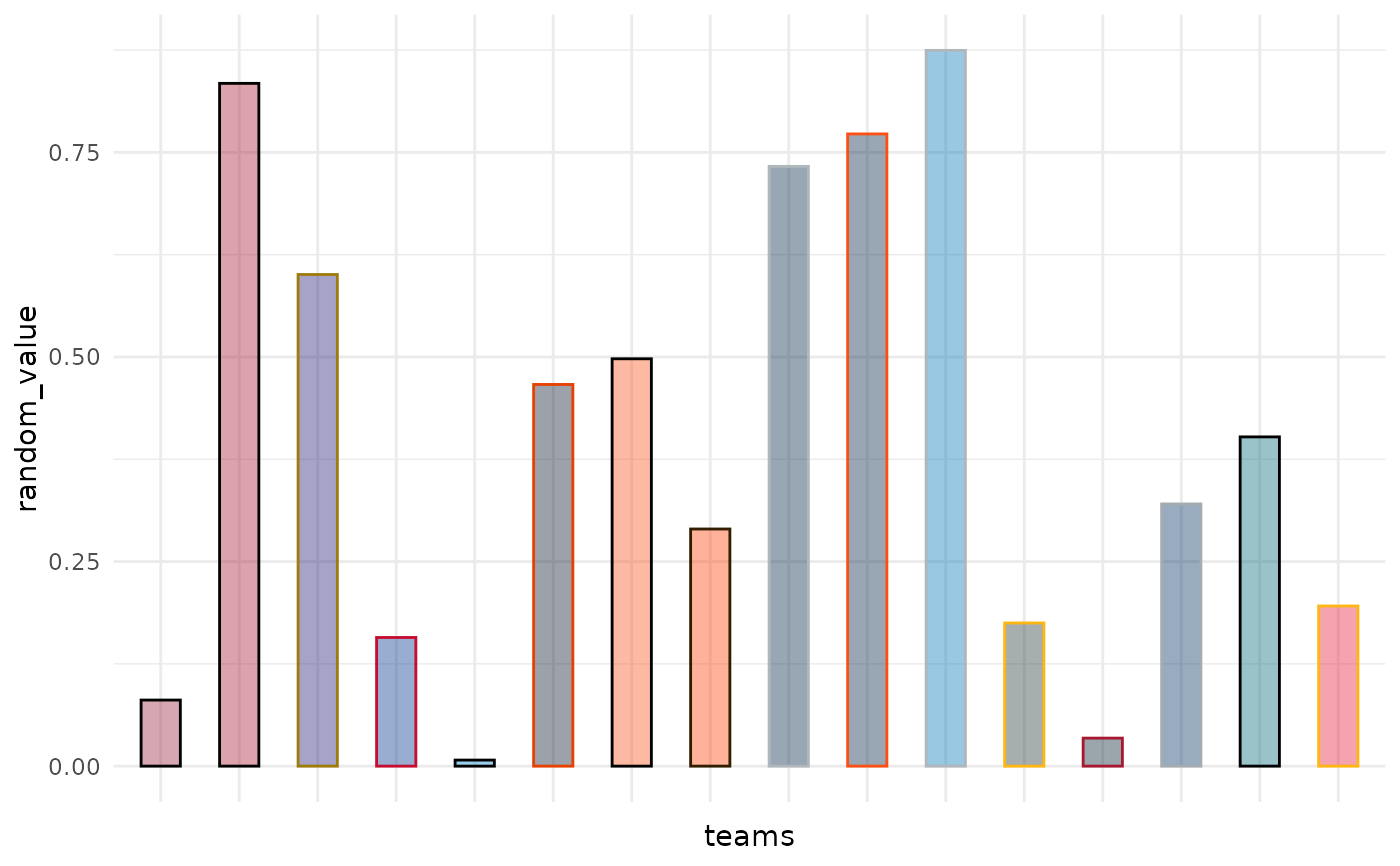

# use logos for x-axis
ggplot(df, aes(x = teams, y = random_value)) +
  geom_col(aes(color = teams, fill = teams), width = 0.5) +
  scale_color_sdv(league = "nfl", which = "secondary") +
  scale_fill_sdv(league = "nfl", alpha = 0.4) +
  theme_minimal() +
  theme(axis.text.x = element_sdv_logo(league = "nfl"))

# }
