I’ll be honest: I didn’t know what to call this function. I still don’t think that gt_border_bars is a particularly good name. That said, this function offers so much versatility for your table designs.

In essence, it places colored bars at the top or bottom of your table. You’re able to stack as many bars as you’d like, or you could pick just one color and include an image or text. The inspiration for this function came from two different places: a) it opens the possibility of more professional table footers with company logos and b) you can include team logos or player headshots at the top of table recaps.

In this vignette, we’re going to explore three distinct uses of the gt_border_bars family.

library(tidyverse)
library(gt)
library(sdvplotR)

Team Reports

I’m a basketball guy at heart. A lot of my visualization work concerns college basketball – so let’s create a 2024 metric recap for Duke, my alma mater, using gt_border_bars_top.

For data, we’re going to compute every Division I team’s numbers from hoopR’s ESPN box scores. The purpose of this vignette is to show off some quick uses of the function, so we’re going to skip most discussion around the processing of this data.

Let’s define the metrics we care about and whether a higher value is better. We’re going to plot national percentiles on a location split (home vs. away). The efficiency numbers are raw points per 100 possessions, not adjusted for opponents.

stats_to_consider <- c(
  "team", "off_eff", "def_eff", "tempo", "efg", "def_efg", "ftr", "def_ftr",
  "oreb_rate", "dreb_rate", "tov_rate", "def_tov_rate",
  "two_pt_pct", "three_pt_pct", "ft_pct", "def_two_pt_pct",
  "def_three_pt_pct", "def_ft_pct"
)

higher_better <- c(
  "off_eff", "tempo", "efg", "ftr", "oreb_rate", "dreb_rate", "def_tov_rate",
  "two_pt_pct", "three_pt_pct", "ft_pct"
)

Let’s get the data. The box scores hold one row per team per game, so joining each row to its opponent’s row puts both ends of the floor side by side. Possessions are estimated from the box score.

box <- hoopR::load_mbb_team_box(seasons = 2024) %>%
  mutate(poss = field_goals_attempted - offensive_rebounds + total_turnovers + 0.475 * free_throws_attempted)

games <- box %>%
  # Division I teams only; the box scores also hold their games against other divisions
  filter(team_id %in% team_reference("mbb")$espn_team_id) %>%
  inner_join(
    select(box, game_id,
      opponent_team_id = team_id, opp_score = team_score, opp_poss = poss,
      opp_fgm = field_goals_made, opp_fga = field_goals_attempted,
      opp_3pm = three_point_field_goals_made, opp_3pa = three_point_field_goals_attempted,
      opp_ftm = free_throws_made, opp_fta = free_throws_attempted,
      opp_oreb = offensive_rebounds, opp_dreb = defensive_rebounds, opp_tov = total_turnovers
    ),
    by = c("game_id", "opponent_team_id")
  )

team_factors <- function(data) {
  data %>%
    summarise(
      off_eff = 100 * sum(team_score) / sum(poss),
      def_eff = 100 * sum(opp_score) / sum(opp_poss),
      tempo = mean((poss + opp_poss) / 2),
      efg = (sum(field_goals_made) + 0.5 * sum(three_point_field_goals_made)) / sum(field_goals_attempted),
      def_efg = (sum(opp_fgm) + 0.5 * sum(opp_3pm)) / sum(opp_fga),
      ftr = sum(free_throws_attempted) / sum(field_goals_attempted),
      def_ftr = sum(opp_fta) / sum(opp_fga),
      oreb_rate = sum(offensive_rebounds) / sum(offensive_rebounds + opp_dreb),
      dreb_rate = sum(defensive_rebounds) / sum(defensive_rebounds + opp_oreb),
      tov_rate = sum(total_turnovers) / sum(poss),
      def_tov_rate = sum(opp_tov) / sum(opp_poss),
      two_pt_pct = sum(field_goals_made - three_point_field_goals_made) /
        sum(field_goals_attempted - three_point_field_goals_attempted),
      three_pt_pct = sum(three_point_field_goals_made) / sum(three_point_field_goals_attempted),
      ft_pct = sum(free_throws_made) / sum(free_throws_attempted),
      def_two_pt_pct = sum(opp_fgm - opp_3pm) / sum(opp_fga - opp_3pa),
      def_three_pt_pct = sum(opp_3pm) / sum(opp_3pa),
      def_ft_pct = sum(opp_ftm) / sum(opp_fta),
      .by = team_location
    ) %>%
    rename(team = team_location)
}

# ESPN labels every game home or away, neutral sites included
home_splits <- games %>%
  filter(team_home_away == "home") %>%
  team_factors()

away_splits <- games %>%
  filter(team_home_away == "away") %>%
  team_factors()

Here’s a quick function to take that data and calculate percentiles using dplyr. We’re going to pivot the data to a long format for later use.

calculate_percentiles <- function(data, location) {
  data %>%
    mutate(
      across(all_of(higher_better), ~ percent_rank(.x)),
      across(setdiff(stats_to_consider, c("team", higher_better)), ~ percent_rank(-.x))
    ) %>%
    pivot_longer(-team, names_to = "stat", values_to = "percentile") %>%
    mutate(location = location)
}

Now, let’s calculate those percentiles on each split and combine the data. We need to pivot the final result to a wide format so that we can plot home and away columns.

home_percentiles <- calculate_percentiles(home_splits, "home")
away_percentiles <- calculate_percentiles(away_splits, "away")

final_data <- bind_rows(home_percentiles, away_percentiles) %>%
  pivot_wider(names_from = location, values_from = percentile)

For final processing, we need to do two more things: a) add the general “group” of each stat and b) rename each stat to something more readable:

dict <- data.frame(
  stat = unique(final_data$stat),
  new_name = c(
    "Off. Efficiency", "Def. Efficiency", "Tempo", "Eff. FG%", "Eff. FG%",
    "FTA per FGA", "FTA per FGA", "Off. Rebound Rate", "Def. Rebound Rate",
    "Turnover Rate", "Turnover Rate", "2FG%", "3FG%", "FT%", "2FG%", "3FG%", "FT%"
  )
) %>% deframe()

final_data <- final_data %>%
  filter(team == "Duke") %>%
  mutate(
    stat_group = case_when(
      stat %in% c("off_eff", "def_eff", "tempo") ~ "Efficiency",
      stat %in% c("efg", "ftr", "oreb_rate", "tov_rate") ~ "Offensive Four Factors",
      stat %in% c("def_efg", "def_ftr", "dreb_rate", "def_tov_rate") ~ "Defensive Four Factors",
      stat %in% c("two_pt_pct", "three_pt_pct", "ft_pct") ~ "Offensive Shooting",
      TRUE ~ "Defensive Shooting"
    ),
    stat = dict[stat]
  )

Awesome! Now we have our data. Let’s throw it over to gt. To create row groups in gt, remember to pass in your data grouped by that category. For this table, we are using several functions from sdvplotR:

gt_theme_savant theme for a clean look
gt_color_pills to fill our two percentile columns. Notice that we are formatting each as a percent and trimming to one digit. We also set our domain, [0, 1], and pass through a palette.
gt_538_caption to include some more information at the bottom of the table.

All said, gt_border_bars_top is the function that we really care about. To keep with our theming, we are using a solid black border. We are passing through a link to the dark-mode Duke logo. You will need to play around with bar_height when you include an image. By default, the function will pick-up the font family that your theme uses for table headers. You can also mess around with text_padding, or you can switch image/text positions by using text_align or img_align.

This is a really quick example. You can easily get something more descriptive with additional time or effort.

final_data %>%
  group_by(stat_group) %>%
  gt() %>%
  cols_hide(team) %>%
  gt_theme_savant() %>%
  gt_color_pills(home,
    domain = c(0, 1), format_type = "percent", digits = 1,
    palette = "ggsci::green_material"
  ) %>%
  gt_color_pills(away,
    domain = c(0, 1), format_type = "percent", digits = 1,
    palette = "ggsci::green_material"
  ) %>%
  gt_538_caption("Data: ESPN box scores via {hoopR}", "Viz. by @andreweatherman for a {gtUtils} vignette") %>%
  cols_width(home:away ~ px(90)) %>%
  cols_label(stat = "", home = "At Home", away = "On Road") %>%
  cols_align(columns = -stat, "center") %>%
  tab_style(locations = cells_body(columns = -stat), cell_text(weight = "bold")) %>%
  tab_options(column_labels.border.top.style = "none") %>%

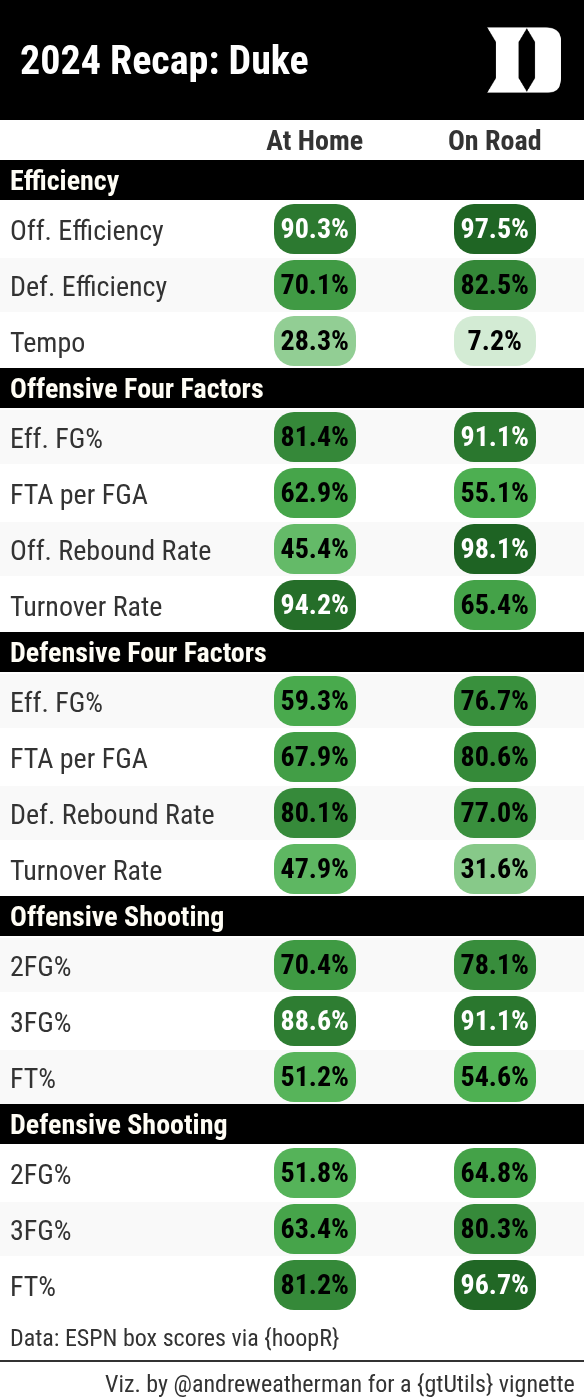

  gt_border_bars_top(
    colors = "black",
    img = "https://a.espncdn.com/i/teamlogos/ncaa/500-dark/150.png",
    text = "2024 Recap: Duke",
    text_padding = 10,
    text_size = 20,
    img_width = 40,
    img_height = 40,
    bar_height = 60
  )

Table Footers

Another possibility is using gt_border_bars_bottom to include a company or personal logo. For this example, let’s pull a TidyTuesday dataset about Rolling Stone’s “500 Greatest Albums” and pull the top 15.

data <- read_csv("https://raw.githubusercontent.com/rfordatascience/tidytuesday/master/data/2024/2024-05-07/rolling_stone.csv") %>%
  slice_min(rank_2020, n = 15)

Again, this is a really quick and small example. The table itself is pretty basic. We use gt_theme_sofa on light mode, throw in some row striping, and include both top and bottom bars. In the bottom bar, we add some source text, push it 12px size, and toss it on normal weight. The image we placed in the bottom could be clearer, but there’s nothing that we can do about that. We stretch it to 100px wide and 30px tall. And with fewer than 20 lines of code, we have a decent start to a table!

data %>%
  mutate(album = paste0(rank_2020, ". ", album, " (", release_year, ")")) %>%
  select(c(album, artist = clean_name, gender = artist_gender, genre)) %>%
  gt(id = "table") %>%
  gt_theme_sofa() %>%
  sub_missing() %>%
  cols_align(columns = "artist", "left") %>%
  opt_all_caps() %>%
  opt_row_striping() %>%

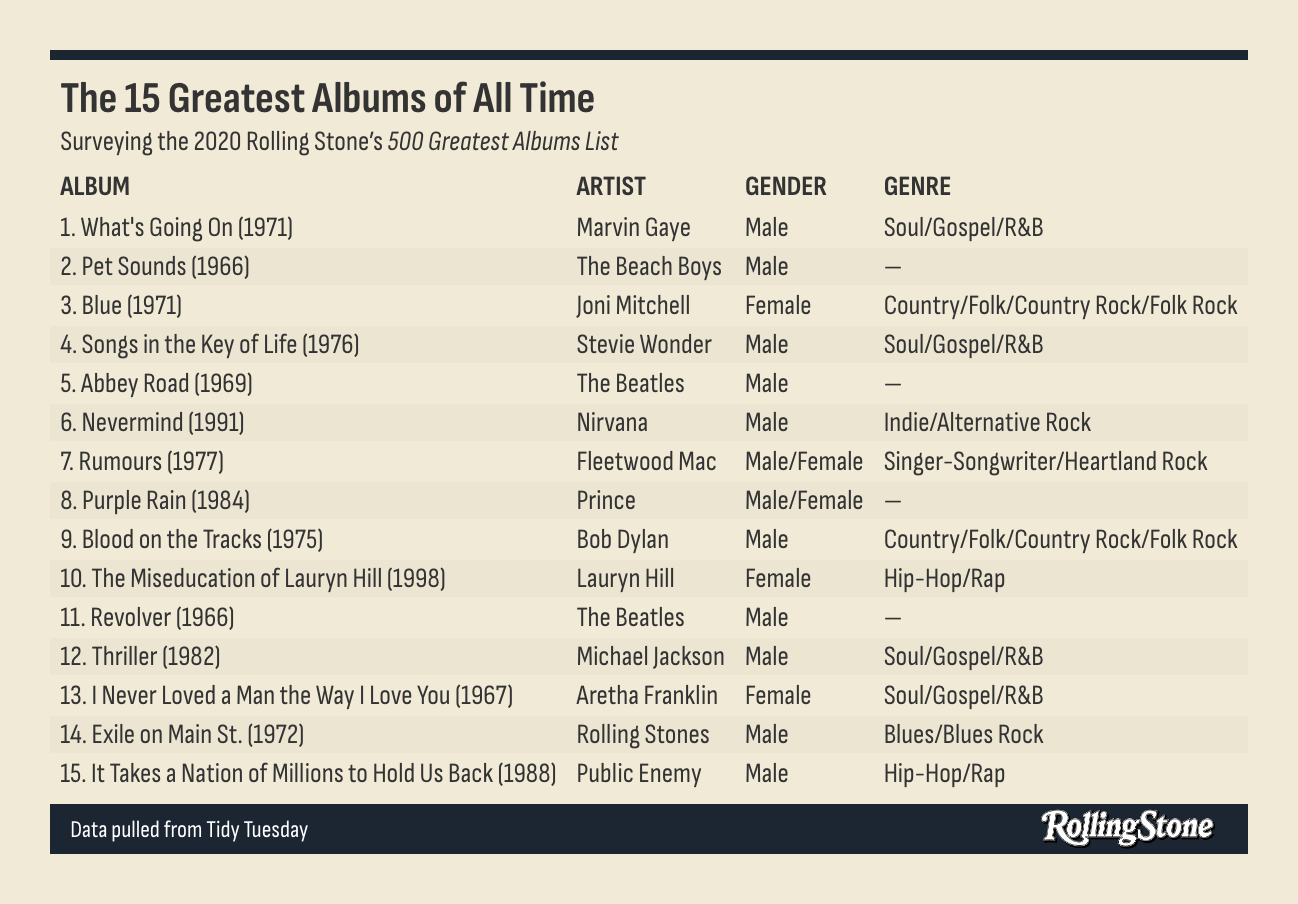

  gt_border_bars_bottom("#1c2632",
    bar_height = 25,
    img = "https://www.sxsw.com/wp-content/uploads/2022/11/RollingStone-BW.png",
    text = "Data pulled from Tidy Tuesday",
    img_width = 100, img_height = 30, text_size = 12, text_weight = "normal"
  ) %>%
  gt_border_bars_top("#1c2632", bar_height = 5) %>%
  tab_header(
    title = "The 15 Greatest Albums of All Time",
    subtitle = md("Surveying the 2020 Rolling Stone's *500 Greatest Albums List*")
  )

Just for fun

Another use of these functions is to add some pizzazz to your table. With gt_border_bars, you don’t need to add any text or image! Let’s whip up a quick example and place some bars on the bottom for fun.

If you do not specify text or an image, you can have as many bars as you’d like – all being placed with equal heights. They are plotted in sequential order, meaning that the first color in your vector is placed at the top and the last color is at the bottom.

data <- withr::with_seed(
  seed = 10,
  {
    nycflights13::flights %>%
      slice_sample(n = 15) %>%
      select(1:8)
  }
)

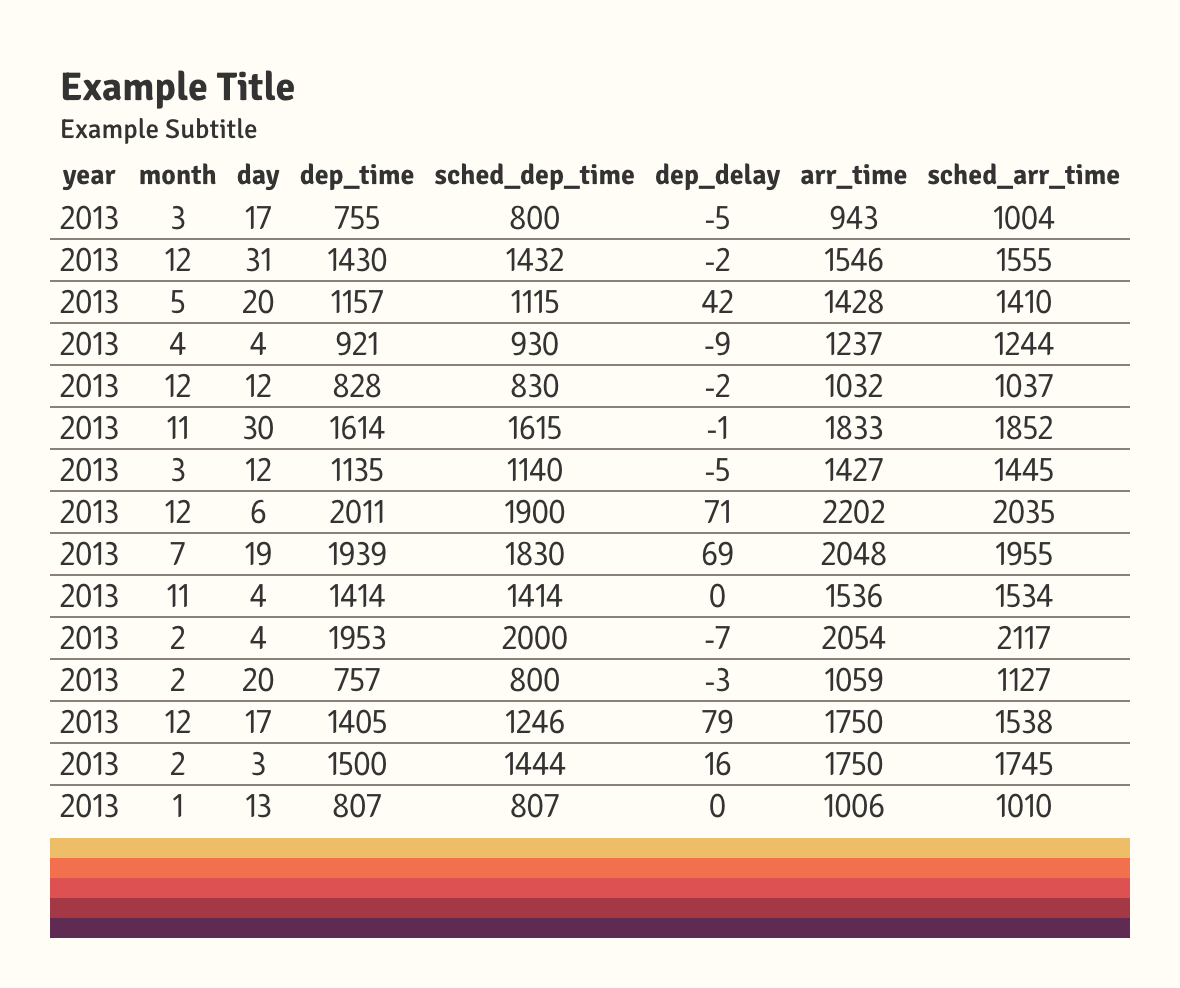

data %>%
  gt() %>%
  gt_theme_gtutils() %>%
  tab_header("Example Title", "Example Subtitle") %>%
  gt_border_bars_bottom(c("#EDBD68", "#F2704E", "#DE5152", "#A43845", "#602B53"))
