Team-Styled Playing Surfaces — sdv

Draws a regulation court, field or rink with 'sportyR' and, given a team, paints a few of its features in that team's colors from sdv_team_colors(). The result is a ggplot, so data layers go on top.

These are stylized surfaces built from team colors, not the team's real court, field or rink design: no dataset of real team surface designs (paint colors, center logos, end zone art, special-event floors) exists yet.

Usage

sdv_surface(league, team = NULL, season = NULL, center_logo = FALSE, ...)

Arguments

league

One of the 59 SportsDataverse surface keys, the same table sdvplot-js uses. Each maps to a 'sportyR' surface:

league	surface
`"nfl"`, `"aaf"`, `"ufl"`, `"usfl"`, `"xfl"`	`sportyR::geom_football("nfl")`
`"cfb"`	`sportyR::geom_football("ncaa")`
`"cfl"`	`sportyR::geom_football("cfl")`
`"nfhs_football"`	`sportyR::geom_football("nfhs11")`
`"nba"`	`sportyR::geom_basketball("nba")`
`"nbagl"`	`sportyR::geom_basketball("nba g league")`
`"wnba"`	`sportyR::geom_basketball("wnba")`
`"mbb"`, `"wbb"`	`sportyR::geom_basketball("ncaa")`
`"fiba"`	`sportyR::geom_basketball("fiba")` (28 x 15 m)
`"nfhs_basketball"`	`sportyR::geom_basketball("nfhs")`
`"mlb"`, `"milb"`, `"pony"`	`sportyR::geom_baseball()` of the same league
`"ncaa_baseball"`	`sportyR::geom_baseball("ncaa")`
`"little_league"`	`sportyR::geom_baseball("little league")`
`"nfhs_baseball"`	`sportyR::geom_baseball("nfhs")`
`"ncaa_softball"`	`sportyR::geom_softball("ncaa")`
`"nhl"`, `"whl"`	`sportyR::geom_hockey("nhl")` (no WHL rink in 'sportyR')
`"pwhl"`, `"ahl"`, `"echl"`, `"ohl"`, `"qmjhl"`, `"ushl"`, `"phf"`, `"iihf"`, `"nwhl"`	`sportyR::geom_hockey()` of the same league
`"ncaa_mhockey"`, `"ncaa_whockey"`	`sportyR::geom_hockey("ncaa")`
`"soccer"`	`sportyR::geom_soccer("fifa")`, 105 x 68 m (`pitch_updates` overrides)
`"fifa"`, `"epl"`, `"mls"`, `"nwsl"`	`sportyR::geom_soccer()` of the same league ('sportyR”s own pitch size)
`"ncaa_soccer"`	`sportyR::geom_soccer("ncaa")`
`"nll"`, `"pll"`	`sportyR::geom_lacrosse()` of the same league
`"world_lacrosse"`	`sportyR::geom_lacrosse("world lacrosse")`
`"ncaa_mlacrosse"`, `"ncaa_wlacrosse"`	`sportyR::geom_lacrosse("ncaam")`, `("ncaaw")`
`"usa_mlacrosse"`, `"usa_wlacrosse"`	`sportyR::geom_lacrosse("usam")`, `("usaw")`
`"atp"`, `"wta"`, `"itf"`, `"ita"`, `"usta"`	`sportyR::geom_tennis()` of the same league
`"ncaa_tennis"`	`sportyR::geom_tennis("ncaa")`
`"fivb"`	`sportyR::geom_volleyball("fivb")`
`"usa_volleyball"`	`sportyR::geom_volleyball("usa volleyball")`
`"ncaa_volleyball"`	`sportyR::geom_volleyball("ncaa")`
`"wcf"`	`sportyR::geom_curling("wcf")`
`"curling_canada"`	`sportyR::geom_curling("curling canada")`

The PWHL and the G League draw their own rink and court, as in sdvplot-js. Surfaces need 'sportyR' 2.4.5 or later, from CRAN (install.packages("sportyR")).

team

NULL (the default) for the plain regulation surface, or one team identifier, resolved by sdv_resolve(). Only keys that are also team leagues of sdv_leagues() take one; the others ("fifa", "atp", "nll", "epl", ...) error.

season

A season for the team's colors and center logo (see sdv_team_colors()); NULL is the current identity.

center_logo

If TRUE, draw the team's logo at center court, center ice or midfield. Needs a team. A baseball or softball field has no center, so the logo goes in shallow center field: at x = 0, midway between second base (baseline_distance * sqrt(2) from home plate) and the center-field fence (center_field_distance), and 0.15 * center_field_distance across, from the league's 'sportyR' field parameters and any field_updates. On an MLB field that is 60 feet across at 263.6 feet from home plate.

...

Passed to the 'sportyR' geom: display_range, rotation, x_trans, y_trans, xlims, ylims, the unit arguments, and color_updates, which overrides the team colors feature by feature (see sportyR::cani_color_league_features() for the names).

Value

A ggplot object (ggplot2::ggplot()) with coord_fixed(); add layers with +.

Details

With a team, these features change; everything else keeps 'sportyR”s regulation colors, so the court stays wood, the field green and the ice white:

Basketball: the painted area and the court apron take the primary color. The lines drawn inside the paint (restricted arc, free-throw circle dashes, lower defensive boxes) turn black or white, whichever contrasts more with it.

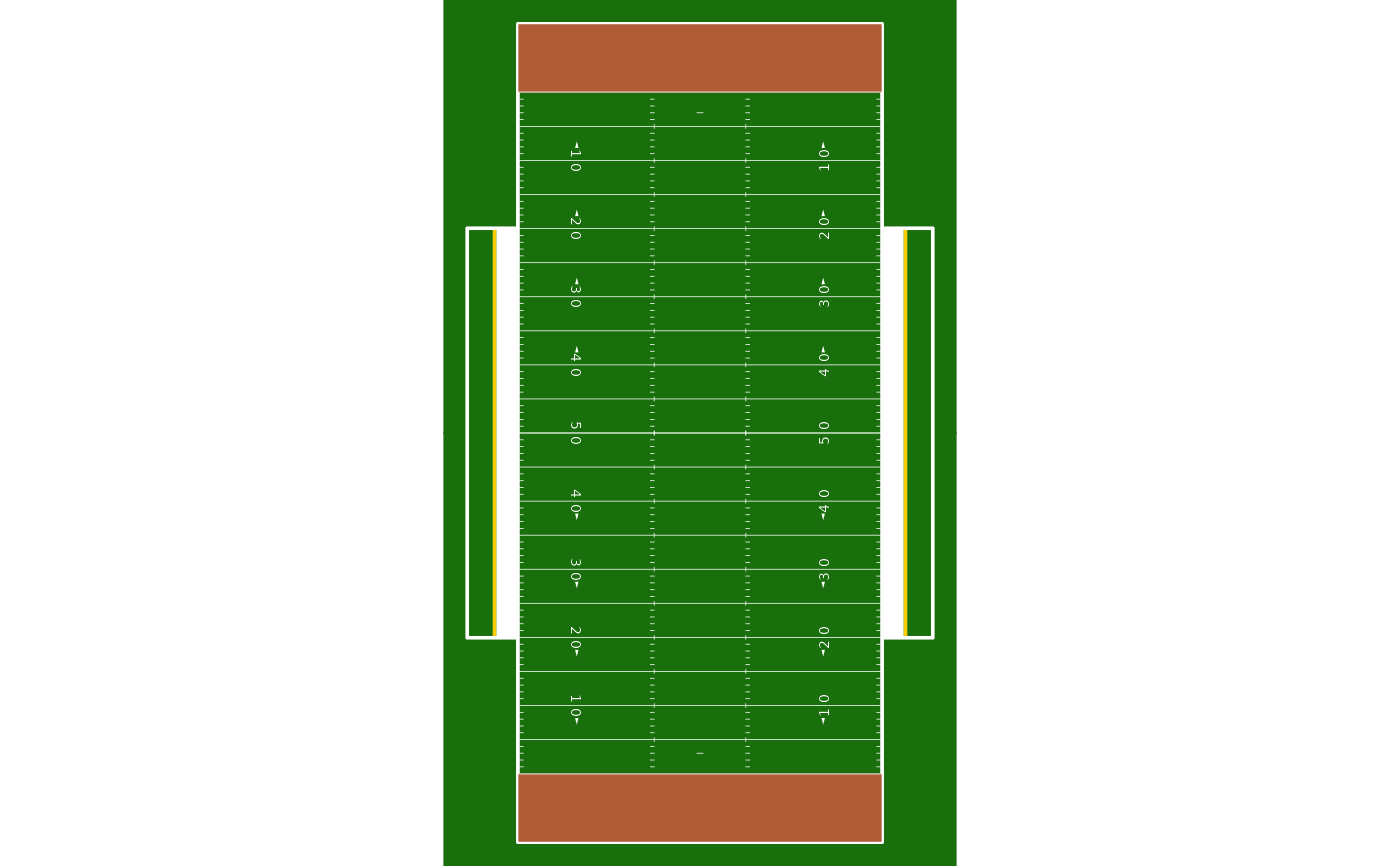

Football: both end zones take the primary color.
Hockey: the center line, center faceoff circle and center faceoff spot take the primary color, or the secondary where the primary is too pale to read on white ice (under 3:1 contrast); the boards take the primary.
Baseball and softball: nothing. No part of a regulation infield is team-colored (the green background is the outfield grass), so the team is checked and the surface stays 'sportyR”s.

Lacrosse, tennis, volleyball and curling surfaces have no team identities yet and take no team.

Soccer and FIBA surfaces are drawn in meters. "soccer" defaults to a regulation 105 x 68 m pitch, the frame sdv_pitch_coords() converts to; 'sportyR”s own "fifa" default is FIFA's 120 x 90 m maximum. Soccer takes a team for its center logo (18.3 m, the center circle); the pitch keeps its regulation colors. FIBA takes a national team ("fiba" pools them).

Surfaces use 'sportyR”s coordinates: the origin at the center, in feet (yards for football, meters for soccer and FIBA). The center logo is sized in those units (12 feet on a court, 10 yards on a field, 24 feet on a rink, 18.3 m on a pitch, 0.15 x the center-field distance on a baseball or softball field, whose origin is home plate) and follows x_trans, y_trans, rotation and the unit arguments.

Examples

# \donttest{
if (requireNamespace("sportyR", quietly = TRUE)) {
  library(ggplot2)

  # in a team's colors, with its logo at center court, and shots on top
  shots <- data.frame(x = c(-40, -35, 30), y = c(5, -12, 0))
  sdv_surface("nba", "BOS", center_logo = TRUE) +
    geom_point(aes(x, y), data = shots, color = "red", size = 3)
}

# }
